GR YARIS SPECIFICATIONS FOR TOYOTA GAZOO IBERIAN RACING CUP

Show details Hide details

ENGINE

Displacement and type

1.6 litres, 3-cylinder, turbocharged

Power [DIN HP].

260HP / 192KW

Maximum torque

360 Nm

Max. Rev.

6,500 rpm

Maximum torque

3,000 - 4,000 rpm

Mixed injection

Direct and indirect

Fuel

SP98 unleaded

Transmission

Drivetrain

G-Four 4-wheel drive

Gearbox

Original 6-speed manual

Differentials

Self-locking limited slip differentials

Chassis

Toyota GR Yaris monocoque with safety roll bar

Front suspension

MacPherson struts with coil spring and adjustable

Rear suspension

Deformable parallelogram with coil spring and adjustable

Front and rear anti-roll bars

Brakes

Front tarmac

356 mm ventilated discs

Rear tarmac

297 mm ventilated discs

Front gravel

297 mm ventilated discs

Rear gravel

297 mm ventilated discs

Hydraulic handbrake

Tarmac / Gravel

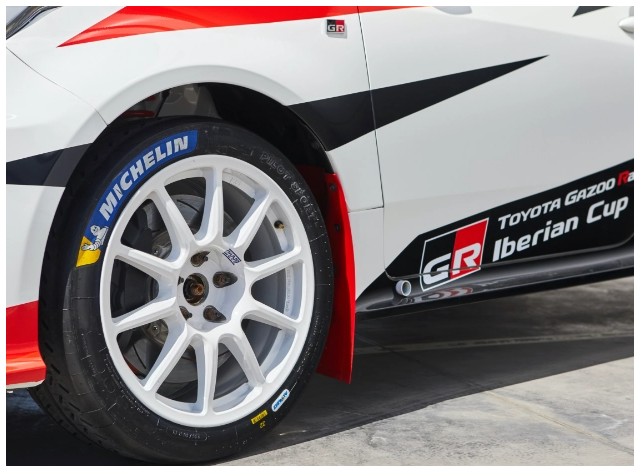

Wheels

Racing wheels Braid tarmac

8x18

Racing wheels Braid gravel

7x15

Racing tarmac tyres

20-65/18

Racing gravel tyres

17-65/15

Dimensions

Lenght

3.995 mm

Width

1.805 mm

Height

1.455 mm

Wheelbase

2.558 mm

front axle

1.536 mm

Rear axle

1.572 mm

Weight

1.300 kgs (N4 regulation)

COMPETITION KIT COMPONENTS

Show details Hide details

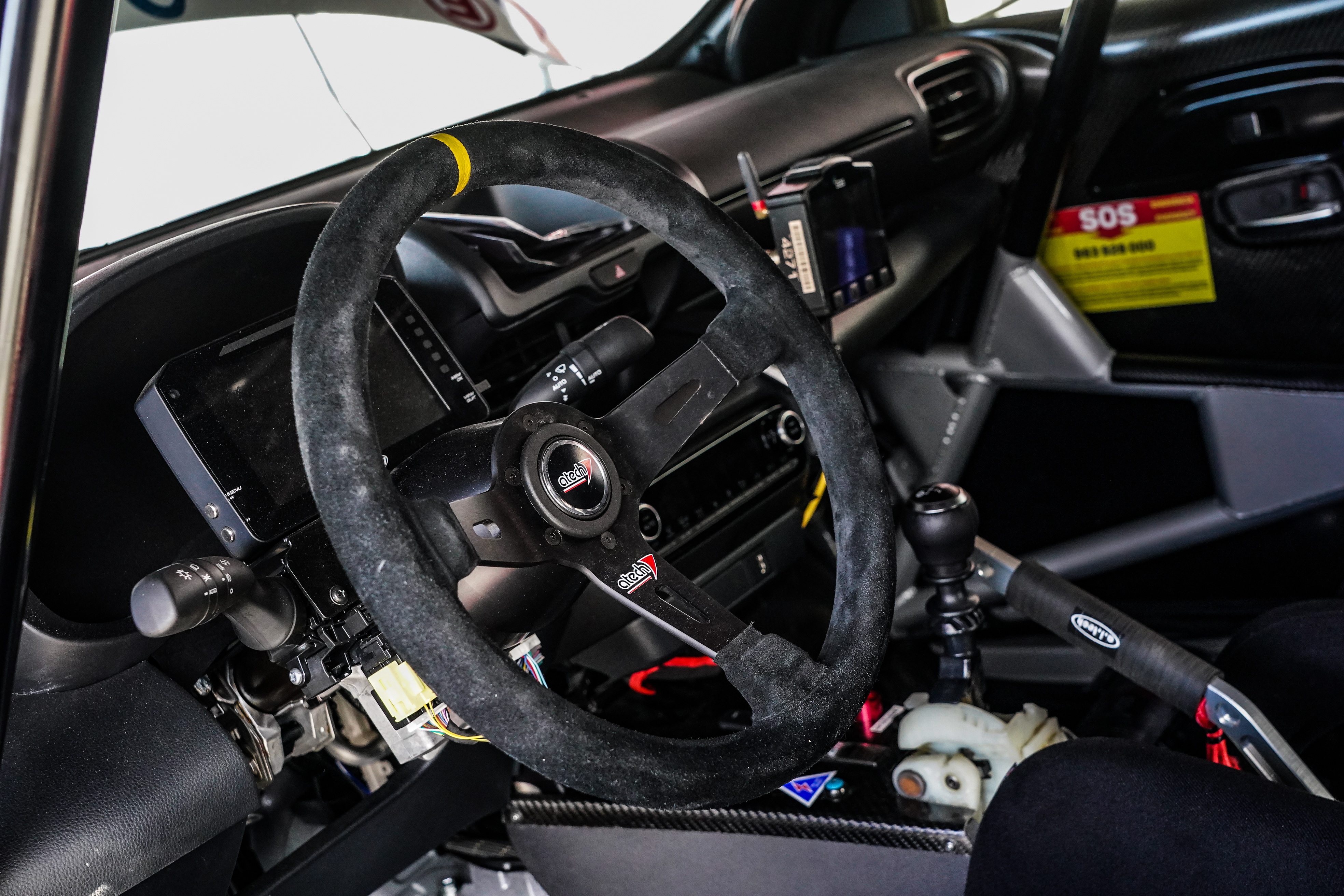

INTERIOR EQUIPMENT

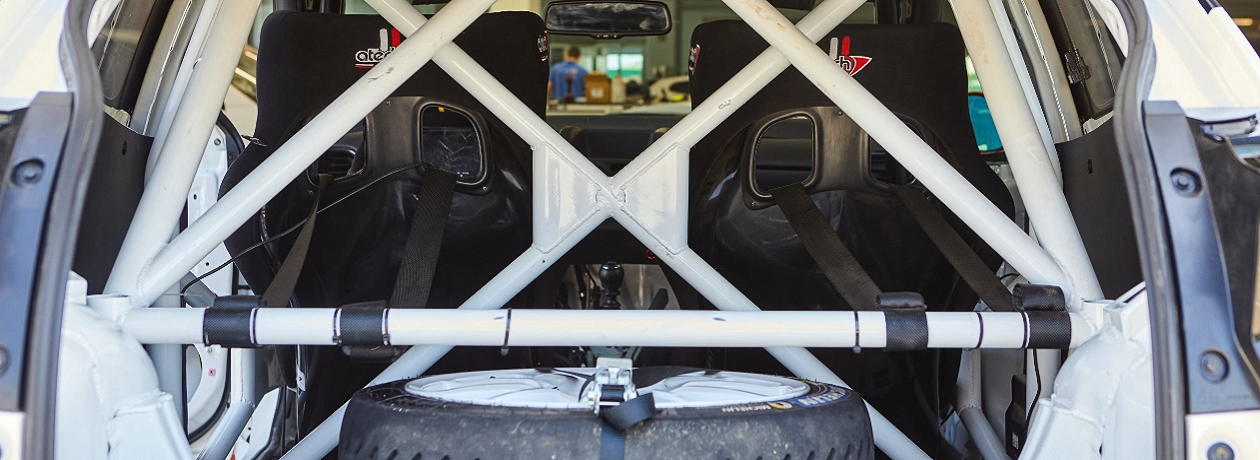

· Integral safety arch in compliance with FIA 2021 regulations.
· Safety bar protectors
· Racing seats with adjustable supports
· Racing safety belts with 6-point anchorage points
· Racing steering wheel with adapter
· Co-driver flexible map light
· Carbon fibre driver and co-driver footrests
· Carbon fibre door panels
· Helmet holder
· Automatic fire extinguishing equipment
· Manual fire extinguishing equipment
· Wheel jack EVO CRK
· Spare wheel spanner with adapter
· Holder for 2 spare wheels with mounting brackets
· Fuel extraction kit in compliance with FIA regulations

EXTERIOR EQUIPMENT

· Carbon fibre rear-view mirrors
· Front and rear duraluminium crankcase covers
· Roof air intake with adjustable ventilation ducts
· Front bonnet and tailgate latches/Bonnet air intakes
· Front and rear tow straps
· Explosion-proof films for side windows
· Wheel skirts and wheel arch guards
· Anchorages on chassis together 4 support stands

DRIVE TRAIN

· 33mm restrictor: 262HP
· Stainless steel exhaust with standard catalytic converter
· Pressure plate and Sachs two-disc clutch assembly
· High security fuel lines
· Anti-torque motor mount
· Front and rear limited-slip self-locking
· Racing fluids
· Kit de tubagens do intercooler em silicone
· Oil cooler kit

ELECTRICAL SYSTEM

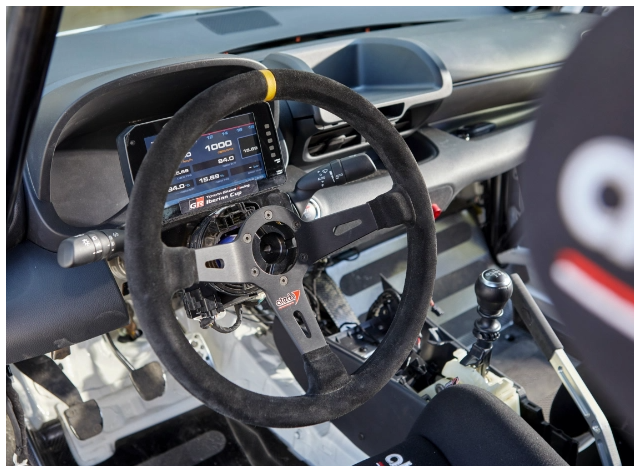

· Data acquisition equipment with 6" display
· High-performance dry battery
· CARTEK Power disconnection equipment
· 2 LAZER 8 LED headlight grids

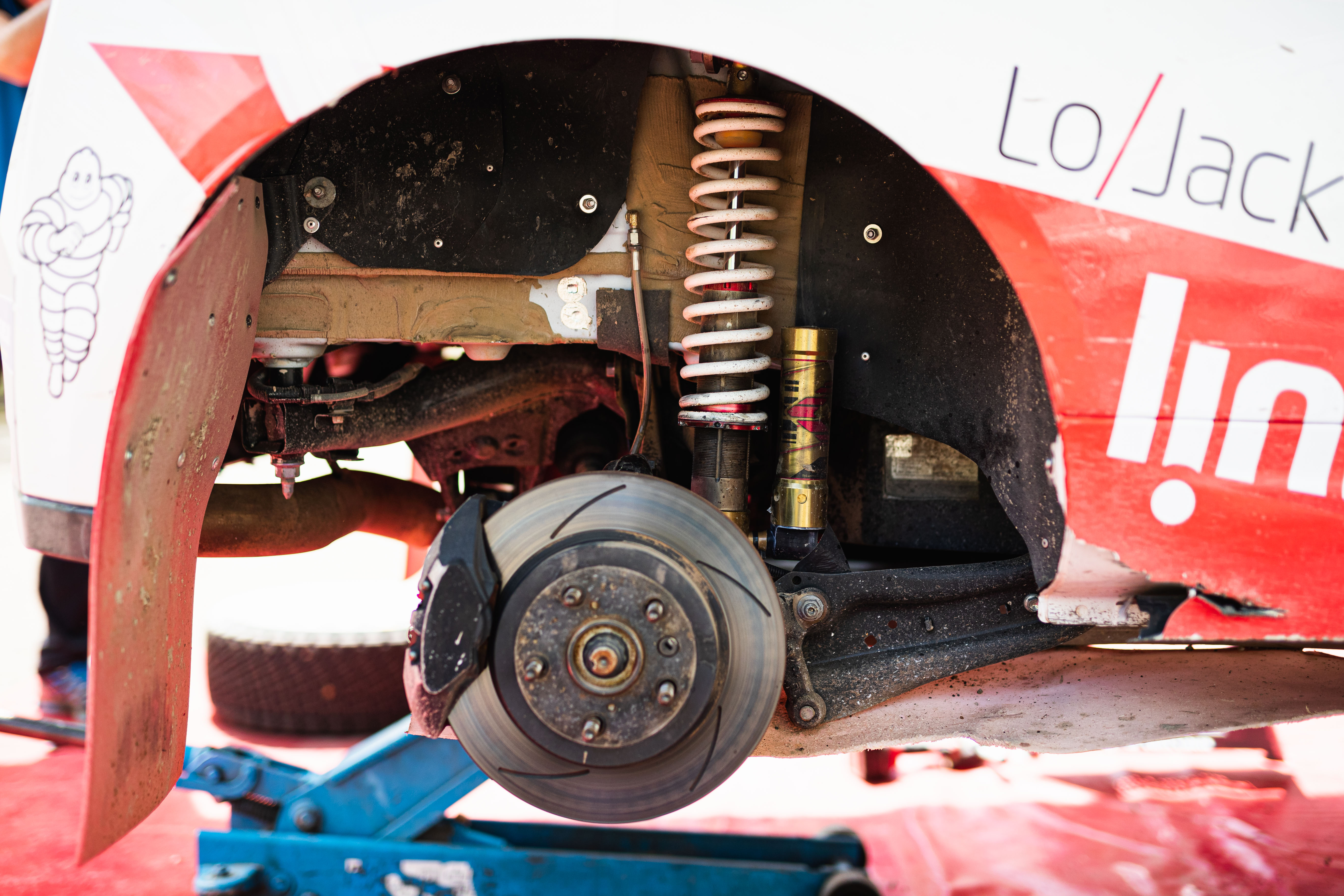

SUSPENSION AND BRAKES

· Full tarmac suspension with its springs
· Reinforcing rod between front suspension brackets
· 12 tarmac rims; 5 with racing tyres
· Reinforced studs and lightened wheel nuts
· Hydraulic handbrake kit with brake distribution and racing hoses

GRAVEL KIT

· Springs for gravel configuration
· Front brake caliper carrier
· Front brake discs
· 12 rims
